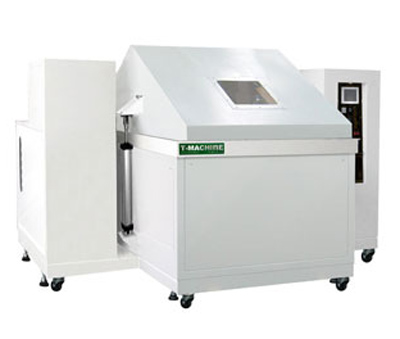

TMJ-9704 COMBINED CYCLIC TESTER



Description:

SPECIFICATION:

MODEL
ITEM
TMJ-9704C1TMJ-9704C2
TEST APPLICABLEACSS, SOAK, DRY AIR, HUMI, ROOM AIRACSS, DRY AIR, HUMI
TEST TEMPERATURE-20℃~80℃RT+10℃~60℃
INSIDE DIMENSION960x510x860(WxDxH) mm900x600x500(WxDxH) mm
OUTSIDE DIMENSION1500x1000x1700(WxDxH) mm1850x1450x1550(WxDxH) mm
VOLUME420 LITER270 LITER
WEIGHT380 KGW380 KG
TEST APPLICABLE60~95%RH (RT+10℃~70℃)60~95%RH (30℃~60℃)
SALT SPRAY TEMPERATURERT +5℃~50℃(CASS)RT +5℃~50℃(CASS)
SALT SOAK TEMPERATURE RT +10℃~60℃RT +10℃~60℃
DRY AIR TEMPERATURE RT +10℃~70℃>RT +10℃~60℃
POWER CONSUMPTION220V SINGLE PHASE 8KW220V SINGLE PHASE 6KW
